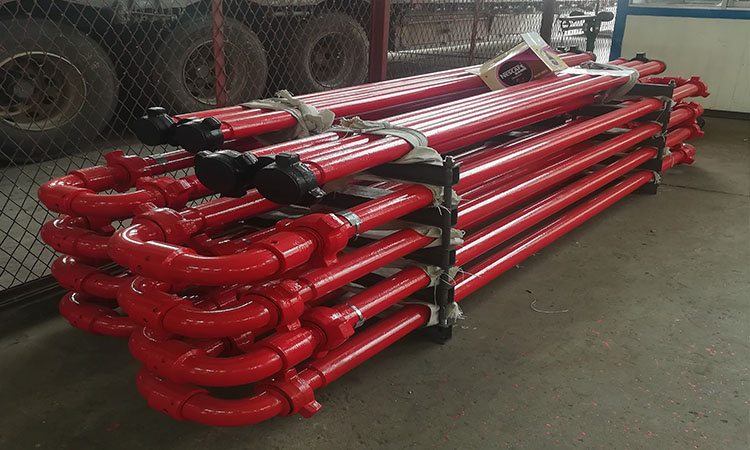

Chiksan Hose Loop

The hose loop is characterized by flexibility, impact resistance, vibration resistance, big rate of flow, etc.
The hose loop is connected by union, which is simple to assemble and disassemble, crush resistance, and with high sealing performance.
It has the advantage of easy foldability, convenient transportation and storage.
The thread joint conforms to international specifications.

Quantity:
Availability:





Inquire Add to Basket

cementing and circulating hose loop circulating hose loop fig 1502 hose loop high pressure hose loop 2fig 1502 hose loop for oilfield API standard hose loop

Product Description

Technical Specification

Drawing

Hose Loop

The hose loop is assembled by swivel joints, hammer union and pup joint, it can be swivelled in three directions flexibly. It is commonly used in oil field cementing, acid fracturing etc. It is usually used in discharge pup joint, transportation pup joint, well testing pup join, well-cementing pup joint, and transportation liquid flow under a high-pressure environment.

Product Name	Circulating Hose Loop, Chiksan Hose Loop
Material Class	AA-EE
Working Media	Crude oil and natural gas
Processing Standard	6A
Working Pressure	6000~15000psi
Nominal Bore Diameter	2”, 3”, 4”
Connection Type	fig602, fig1002, fig1502 etc.
Type	Long radius, short radius
Customized	Please provide size, type, pressure, length etc. Or drawing
