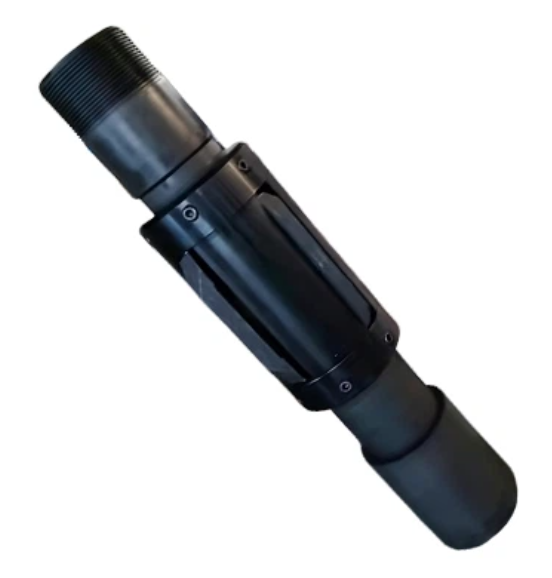

Pump Torque Anchors

Torque anchor is a kind of anchor tool specially designed for a screw pump. ltmainly consists of an upper sub.anchor, reed, mandrel, etc. When the screw pump rotates, the torque anchor can effectively avoid the tubing rotation.It has the characteristics of simplestructure, simple installation, working fexibility, and safe anchoring, widelyused in anchoring screw pumps andanchoring of tubing of the tubular pumps.

Quantity:
Availability:





Inquire Add to Basket

6 5/8 inch pc pump torque anchors pc pump torque anchors torque anchor redress kit torque anchor pump torque anchors oilfield 6 5/8'' pc pump torque anchors pc pump torque anchors oilfield pc pump torque anchors Downhole Tools PC Pump Tubing Anchor /Torque Anchor Oilfield PC Pump Torque Anchor

Product Description

Specification

Torque Anchor Works Principle

Maintenance

Torgue Anchor from Vigor is a screw pump anti-anchoring tool specially designed for progressing cavity pumps,its unique design will prevent you from falling off the oil pipe and sucker rod, thus protecting the safety of the construction site.
The product is composed of an upper joint, flap, pressure spring, central tube, etc., the overall structure of theproduct is very compact, and the internal design is very scientific.
Vigor has strict control over the torque anchor's production and processing technology, which ensures that eachset of products we sell has excellent performance.

Type	length mm	O.D. mm	i.D. mm	Anchor Pressure (N.M)	Working Temperature(°C)	I.D. of Casing (mm)	0.D. of Range of Opened Wedge mm	Casing Size	Thread Type
FTM-6 5/8"x2 7/8"	609	156	62	400-450	150	150-157	148- 160mm	6-5/8”	2-7/8EUE(BxP)
FTM-6 5/8"x3 1/2"	609	156	76	400-450	150	150-157	148- 160mm	6-5/8”	3-1/2EUE(BxP)

Its working principle is also very simple when the screw pump starts, the rotor runs to drive the stator and the upperjoint and the central tube to rotate, wedge the clamp block, jam on the casing wall, and complete the sitting card.When the screw pump stops working, the stator rotates under the action of elasticity to release energy, and the clampis recovered under the action of the reed contraction force to complete the declamping. The force during the entire working process is very uniform, and the shell is almost not damaged, so the torgue anchor from the vigor only needsregular maintenance.

Below Are Our Comments On The Maintenance OfOur Torque Anchor:

Torque anchor management, repair, shall be borne by theunit(company) of specialized tools.
Torque anchor from borehole should be cleaned in time, preventaggravating corrosion in the air.
Effect use of deformation, damage and corrosion parts shouldbe replaced by, all rubber parts replacement.
Repair, combination, assembly qualified, torque anchor and partsshould take protective measures, stored on the shelf of theventilated, dry warehouse.
. Handling, storage must be careful , it is forbidden to Knockagainst, the rain, the sun, on the ground.
lnventory torque anchor for a longer time (more than rubberparts storage period), should replace rubber parts, inspection,testing rear can use.
