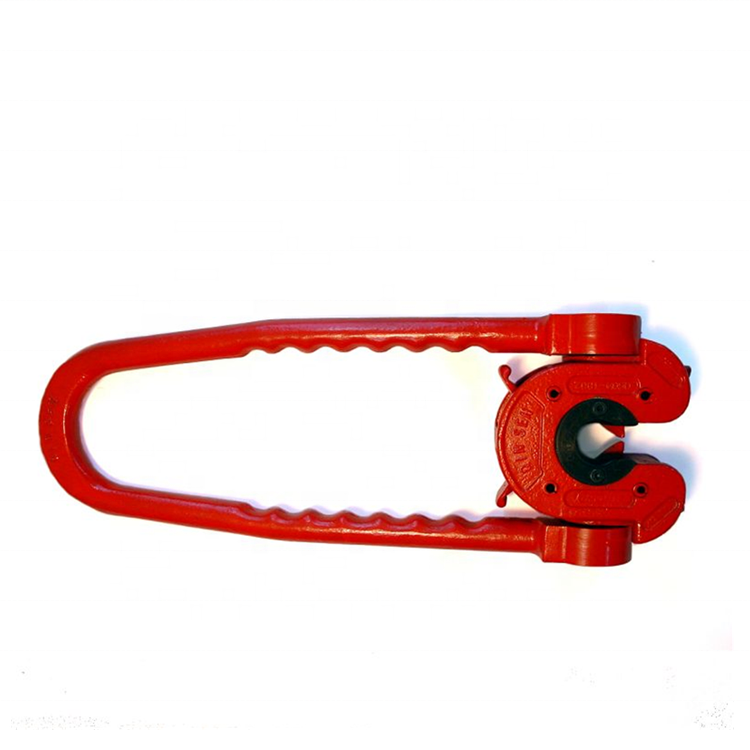

Sucker Rod Elevator

Features:

1. Available 25ton load capacity

2. Available solid body or plate-type style

3. Available in a size range of 5/8” ~ 1-1/2”

4. Strictly tested according to API

5.Made from high-quality heat-treated alloy
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
API Sucker Rod Elevator sre20 sucker rod elevator drilling sucker rod elevator sre sucker rod elevator wellhead tools sucker rod elevator api 8a/8c certification sucker rod elevator handling tools sucker rod elevator oilfield sucker rod elevator sre25 sucker rod elevator sucker rod elevator for oilfield
Product Description
Specifications
Sucker Rod Elevator Parts List
DRAWING

Sucker rod elevators are manufactured and tested according to API Spec 8C. These elevators are made from high-quality heat-treated alloy steel for strength and durability and the rated load ability is 25 tons. It is used for hosting the drilling and production equipment.

Model Applicable for Diameter of Tubular(inch) Rated Capacity(Ton)
SRE20 1/2, 5/8, 3/4, 7/8, 1, 1-1/8, 1-1/4, 1-1/2 20
SRE25 5/8, 3/4, 7/8, 1 25


No. Name Quantity No. Name Quantity No. Name Quantity
1 Body 1 3 Button latch 4 5 Rear Latch 2
2 Bail 1 4 Front Latch 2 6 Spring 2


微信图片_20240527155053
